Mittlerer linearer Dendritabstand in Aluminiumlegierungen

A cast aluminum alloy is submitted for SDAS analysis.

Figure 1. Image of aluminum alloy at 100X.

Abbildung 2. Gemessen wird die Länge des überlagerten Musters, das die Dendriten berührt.

CLEMEX SOLUTION FOR DENDRITE ARM SPACING

Reproducible detection and measurement of SDAS was performed using Clemex Vision image analysis software calibrated with a NIST-traceable stage micrometer.

ERGEBNISSE

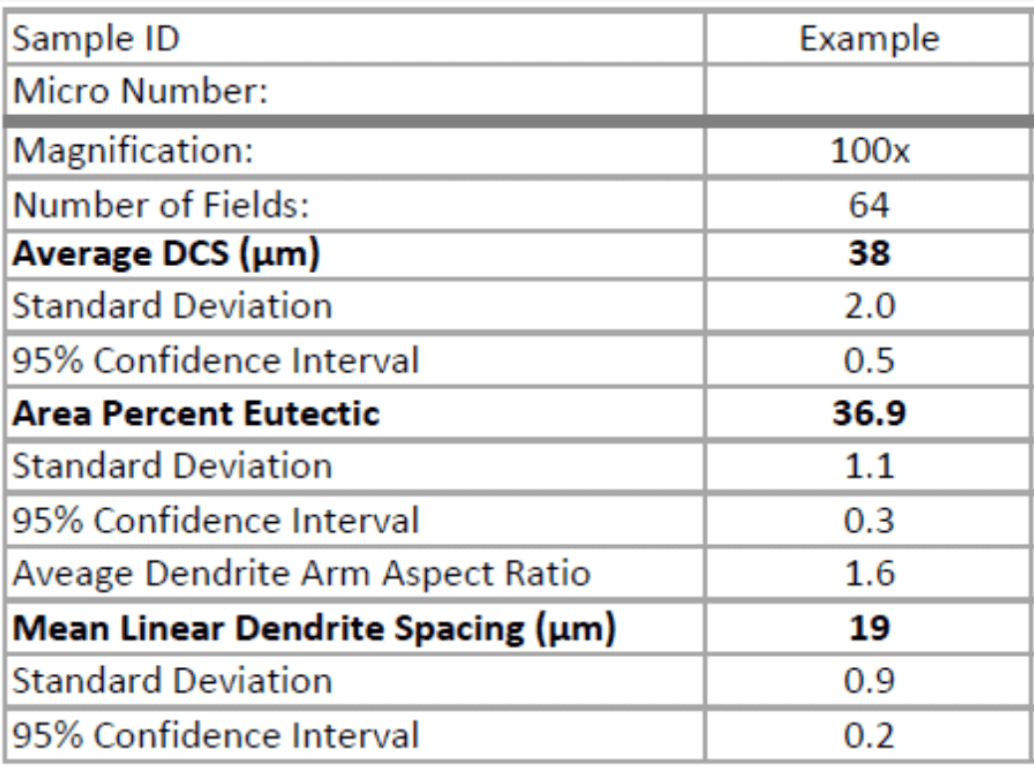

Mean Linear Dendrite Spacing results table showing three essential properties that can be obtained using this Application Package. Analyzing multiple fields could give more representative results.
