Banding and Orientation of Microstructure Analysis Module
Banding, the elongated, layered arrangement of phases left behind by segregation during hot rolling, directly affects the mechanical anisotropy, machinability, and fatigue performance of dual-phase steels and other segregation-prone alloys. Traditional banding assessment relies on visual comparison to reference charts, an inherently subjective process that varies from one metallographer to the next. Clemex's Banding Analysis module automates the full ASTM E1268 procedure: it binarizes the phase of interest, measures its directional distribution, and reports anisotropy and orientation with the same result every time, on every sample.
Stop rating banding severity by eye. Clemex measures it, to the standard, in seconds.
See It In Action
Banding Analysis in Motion
Analysis Workflow
From Image to ASTM E1268 Result in 4 Steps
A fully automated pipeline that takes a polished, etched cross-section straight to a traceable, standard-referenced banding report.

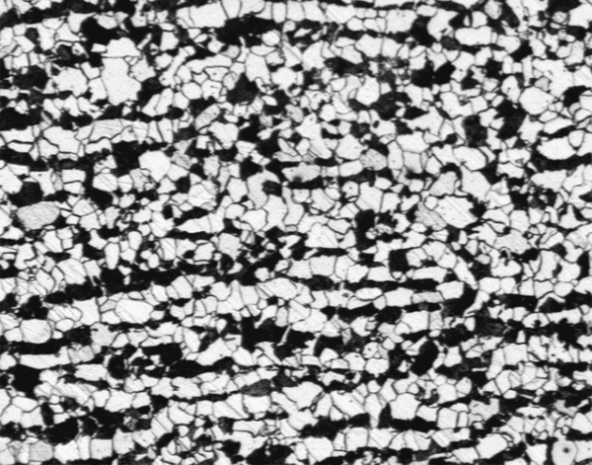

ACQUIRE / LOAD IMAGE
Load an image of your sample from your microscope, camera, or existing dataset.
PHASE SEGMENTATION
Clemex identifies and isolates the phase of interest, cleaning up the image before any measurement is taken.
BANDING & ORIENTATION ANALYSIS
All the measurements required by ASTM E1268 are calculated automatically from the segmented image.
GENERATED REPORT
Get a clear, ready-to-share report with all your results, so you can review and export it with a click.
Analysis Mode
Fully Automated
Detection, segmentation, and banding statistics run automatically across a batch of fields or samples, cumulating results into a single report.
Threshold-Based
Gray-level thresholding automatically isolates the phase of interest across every field, with no manual tracing required.
AI-Powered
A trained AI model automatically detects and segments the phase of interest, adapting to contrast and etch variation without manual tuning.
Measurement Output
Key Banding & Phase Distribution Metrics
For every field analyzed, Clemex computes the full set of area, directional, and orientation descriptors defined by ASTM E1268, giving labs a complete, traceable picture of banding severity.

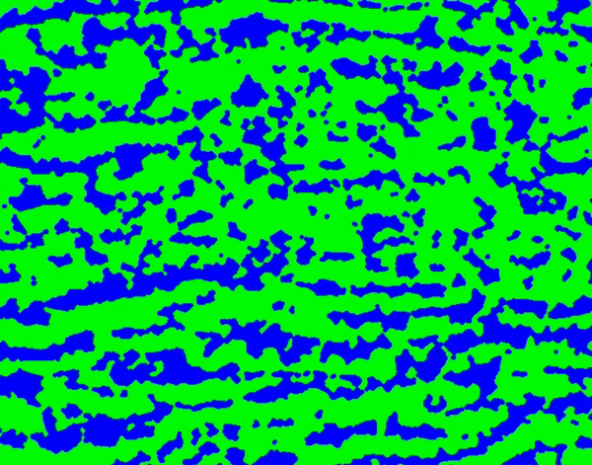

Area % — Evaluated Phase (Blue)
Percentage of the field occupied by the phase binarized for banding evaluation.
Area % — Second Phase (Green)
Complementary area fraction of the remaining matrix phase, automatically computed from the same bitplane.
Field-by-Field Statistics
Area percentages, counts, and banding descriptors are cumulated automatically across every field and specimen in the analysis.
Banding & Orientation Metrics (ASTM E1268)
Nₗ Parallel / Perpendicular
Number of phase-boundary intersections per unit length, counted parallel and perpendicular to the rolling direction — the raw directional counts banding is built from.
Pₗ Parallel / Perpendicular
Number of test-line/phase-boundary point counts per unit length in each direction, feeding directly into the anisotropy calculation.
Anisotropy & Anisotropy Index
Ratio-based descriptors comparing directional measurements to quantify how strongly the microstructure is elongated along the rolling direction.
Degree of Orientation
Normalized measure (0–1) of preferred alignment of the phase boundaries, distinguishing random distributions from strongly banded ones.
Mean Spacing & Mean Free Path Perpendicular
Average distance between successive bands (µm) and average uninterrupted run of the matrix phase, direct indicators of band coarseness.
Key Features
Everything You Need in One Module
From acquisition to final report, Clemex covers the complete ASTM E1268 banding analysis workflow.
AI-Powered Phase Detection
- Gray thresholding isolates the phase of interest into a clean blue bitplane, with adjustable binary joins for touching or broken bands
- Artifact elimination tools remove scratches, pits, and etching noise before any measurement is taken
Full ASTM E1268 Compliance
Area percentage, Nₗ/Pₗ, anisotropy, anisotropy index, degree of orientation, mean spacing, and mean free path are all computed exactly as defined by the standard, with traceable methodology on every report.
Speed & Batch Processing
Analyze large sets of fields or specimens automatically, cumulating statistics and graphs across the full batch for high-throughput QC on incoming steel coils and plate.
Hardware Flexibility
Compatible with a wide range of microscopes, cameras, and motorized stages from any manufacturer, so it fits into the imaging setup you already have.
Analysis Customization
Tailor gray thresholds, binary join/connect rules, artifact filters, magnification, and report templates to your specific alloy, etch, and quality control requirements.
Where Banding Matters
Materials Where Banding Analysis Applies
Banding is not unique to one alloy. Clemex's phase-segmentation engine adapts to the contrast and geometry of each material, without switching models or reconfiguring settings.
Frequently Asked Questions
What is banding, and why does it need to be measured rather than eyeballed?
Banding is the elongated, layered arrangement of phases or constituents that forms when segregated regions from casting are stretched out during hot rolling. It creates a microstructure with markedly different properties along versus across the rolling direction, which affects formability, machinability, toughness, and fatigue life. Visual comparison to reference severity charts is the traditional method, but it is inherently subjective: two metallurgists reviewing the same sample routinely disagree on severity. ASTM E1268 defines quantitative descriptors, area percentage, directional intercept counts, anisotropy, and orientation, that remove that subjectivity.
A measured number, not a visual guess
What does ASTM E1268 actually measure, and how does Clemex implement it?
ASTM E1268 measures banding by counting phase-boundary intersections (Nₗ) and points (Pₗ) along test lines run parallel and perpendicular to the working direction, then combining those counts into anisotropy, anisotropy index, degree of orientation, mean spacing, and mean free path. Clemex automates every step: the phase of interest is binarized into a bitplane using gray thresholding, the directional counts are taken automatically across the field, and all ASTM E1268 descriptors are computed and cumulated into a single report.
The full standard, computed automatically
Can Clemex evaluate more than two phases for banding?
Yes. While the reference analysis on this page evaluates one phase against the remaining matrix (blue vs. green bitplane), the same binarization and banding pipeline can be run against additional phases or constituents in a multi-phase microstructure, each with its own area percentage and directional statistics, letting you compare banding severity between constituents in the same field.
Not limited to a single phase pair
What is the difference between Nₗ, Pₗ, and Mean Free Path?
Nₗ is the number of phase-boundary intersections per unit length of test line; Pₗ is the number of boundary points per unit length. Both are measured parallel and perpendicular to the rolling direction and are the raw directional inputs to the anisotropy calculation. Mean free path is a derived distance, the average uninterrupted run of the matrix phase between bands, perpendicular to the banding direction, giving a physical sense of band coarseness in micrometers rather than a count.
Counts feed the ratios; ratios feed the distances
How do Anisotropy, Anisotropy Index, and Degree of Orientation differ?
Anisotropy is the direct ratio comparing directional intercept counts. Anisotropy Index normalizes that ratio against the fully random and fully banded theoretical extremes defined in ASTM E1268, making it easier to compare samples of different phase content. Degree of Orientation is a bounded 0–1 descriptor of how strongly the phase boundaries are aligned in a preferred direction, independent of how much of the field that phase occupies. Clemex reports all three on every analysis so you are never limited to a single lens on directionality.
Three complementary views of the same banding
Does the module require manual threshold adjustment for every sample?
Thresholds can be adjusted, but they don't have to be re-tuned from scratch for every image. Once a gray thresholding and binary join setting is established for a given alloy, etch, and magnification, it can be reused across an entire batch of fields or specimens, with artifact elimination applied automatically before measurement.
Set once per condition, apply across the batch
Is the analysis compliant with image analysis and metallography standards?
Yes. Clemex's Banding Analysis module follows the methodology defined in ASTM E1268. Measurement parameters, statistical outputs, and report formatting are aligned with the standard's requirements, and every generated report includes traceable methodology and standard references, making it suitable for supplier qualification, quality audits, and customer-facing certification packages.
Standards built into the pipeline
How does Clemex handle uneven etching or contrast variation across a sample?
Real polished-and-etched sections are rarely perfectly uniform: etch depth, illumination, and surface finish can all vary across a field. Clemex's AI detection model was trained on a wide range of real, imperfect microstructures, not just clean lab images, so it learns to recognize true phase boundaries by shape and context rather than relying on a single intensity value. This lets it tell the difference between a genuine band and a scratch, pit, or patch of uneven etching, so banding statistics reflect the microstructure rather than sample preparation artifacts. Gray thresholding and artifact elimination tools remain available for full manual control when needed.
AI-trained on real, imperfect samples, not just ideal ones
Can I run batch banding analysis across many fields or samples automatically?
Yes. Clemex supports fully automated batch processing across any number of fields or specimens. Area percentages, directional counts, and every ASTM E1268 descriptor are cumulated automatically, and a consolidated report is generated at the end of the run, ideal for coil-to-coil or plate-to-plate incoming quality control.
One field or a thousand, same workflow
Does Clemex integrate with the equipment and workflow we already have?
Clemex is built to fit into your lab as it already is, not the other way around. It works with any microscope, camera, or imaging system that produces standard digital image files, from any manufacturer, and slots into existing sample prep and reporting workflows without requiring proprietary hardware or a vendor lock-in. Whether you're running a single manual microscope station or a fully motorized, multi-instrument setup, the same module scales with you.
Your equipment, your workflow. Clemex adapts to it.
Ready to Standardize Your Banding Evaluation?
Talk to a Clemex expert and get a live demo on your own dual-phase or segregation-prone samples. No commitment required.
