High Precision Cleanliness Analysis
The measuring of particle contamination is of the utmost importance in the manufacturing and pharmaceutical industries. Damage caused by these particles can often have detrimental effects in machinery and harmful effects in pharmaceuticals.
That is why the Clemex PSFilter is specially designed to analyse contamination in different areas by measuring particles collected on membrane filters, wafers, tape lifts, or gel packs.
Clemex PSFilter allows to choose from pre-programmed International Standards such as IEST-STD-CC1246D, ISO 16232, ISO 4406-4407, or USP 788.
It also offers the option of customizing its properties so that in-house standards can be applied.

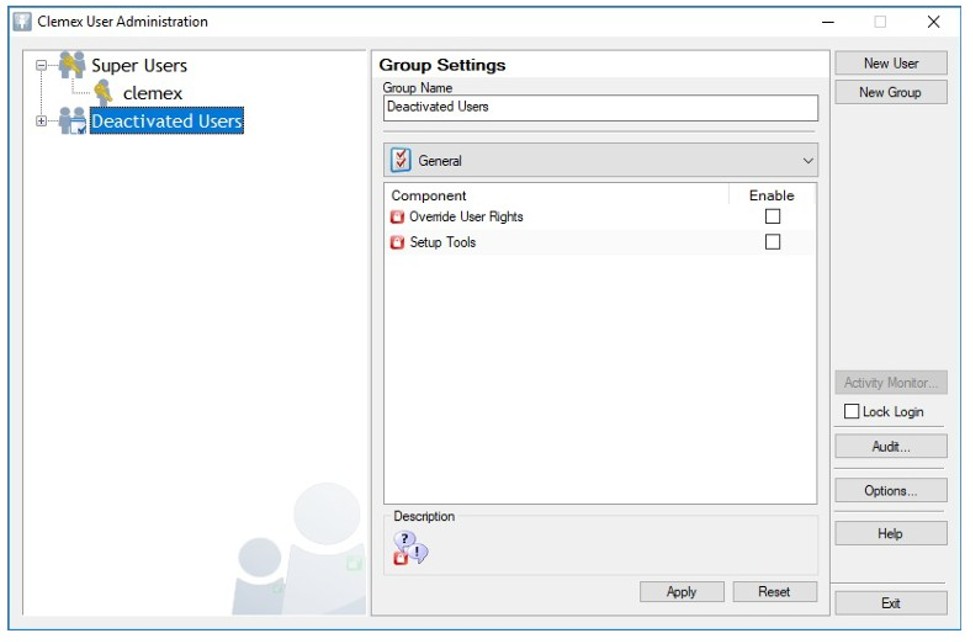

CRF 21 Part 11 Compliance
The User Management Module enables administrators to efficiently manage access and ensure full traceability. It allows the creation of users and user groups, while maintaining a detailed audit trail of all system activities. This optional module also supports secure electronic signatures, providing a reliable and compliant solution for regulated environments.

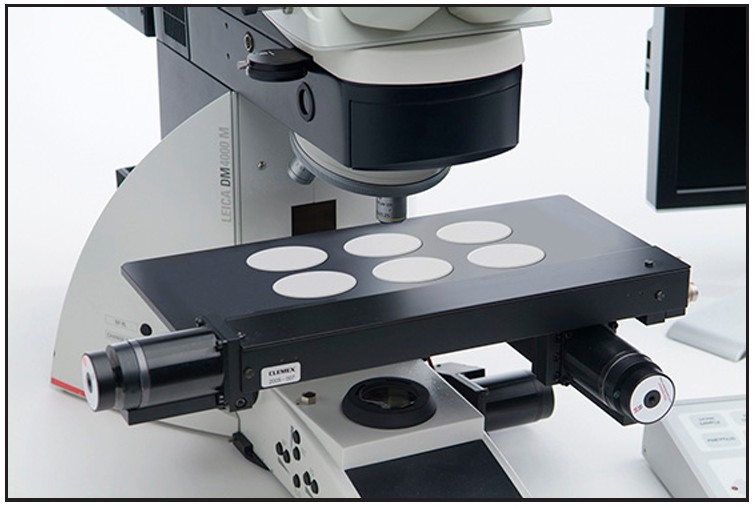

Individual Reports for up to 6 samples
Analyze particulates across up to six samples automatically, without user intervention. Once the scan is complete, review all collected data in a single interface and generate individual reports for each sample with ease.

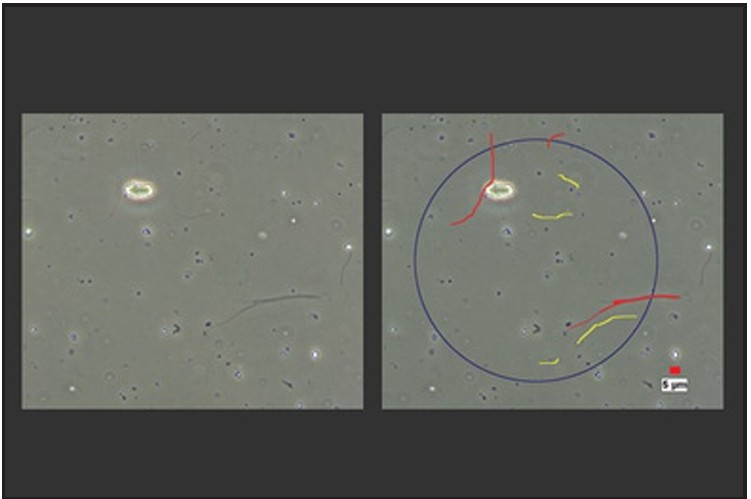

Contrast Threshold
Transparency, low contrast, and poorly defined outlines can make certain objects difficult to distinguish. Contrast thresholding is particularly effective for detecting faint particles on filters, thin-walled cells, and crystals with variable thickness.

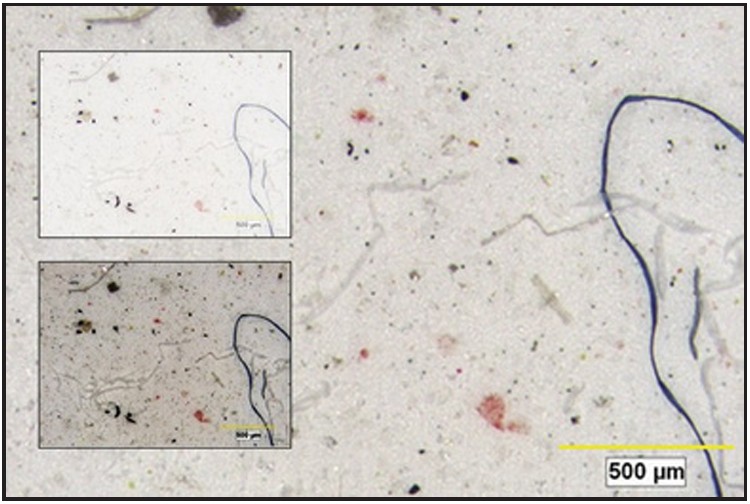

Large Fibers

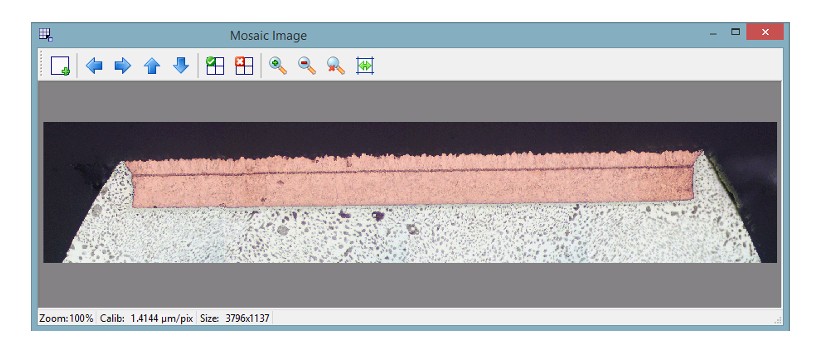

Both large fibers and small particulate contaminants are detected within a single automated run. Fibers exceeding the field of view are seamlessly reconstructed using the automated mosaic function, ensuring accurate identification and measurement.

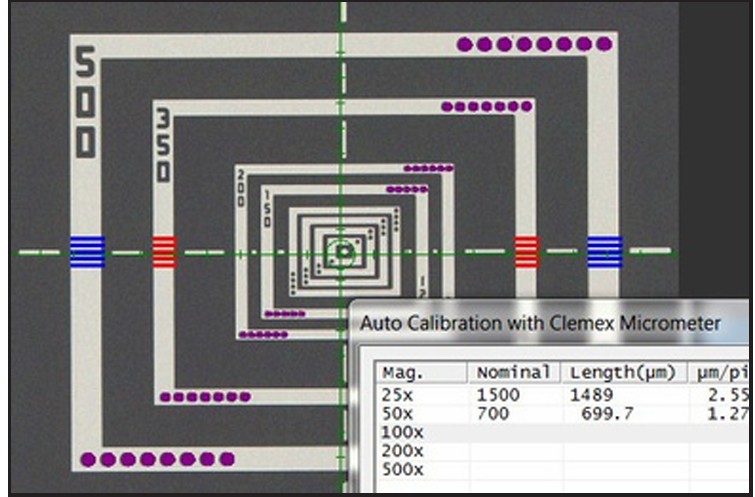

NIST-Traceable Auto Calibration
Using a NIST-traceable stage micrometer, Clemex software automatically calibrates each objective, eliminating operator subjectivity. This ensures accurate, reproducible, and fully traceable results.

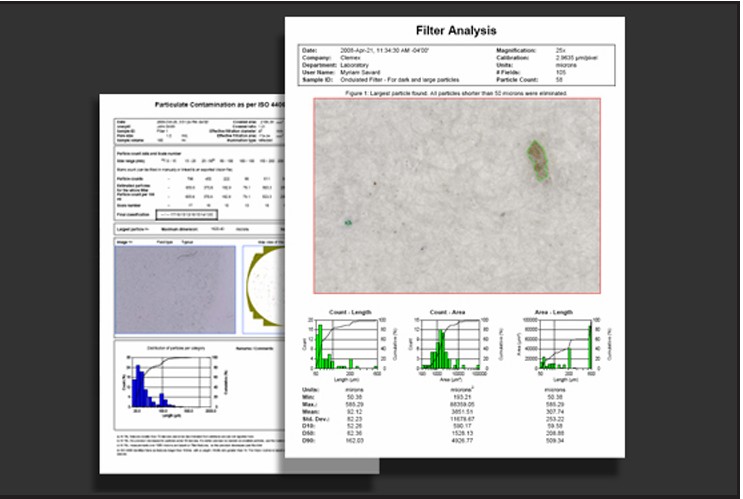

Automated Reporting
Reports are automatically generated after each analysis and can be fully customized to meet your requirements. Easily include your company logo, captured images, graphs and charts, as well as detailed statistics and results.

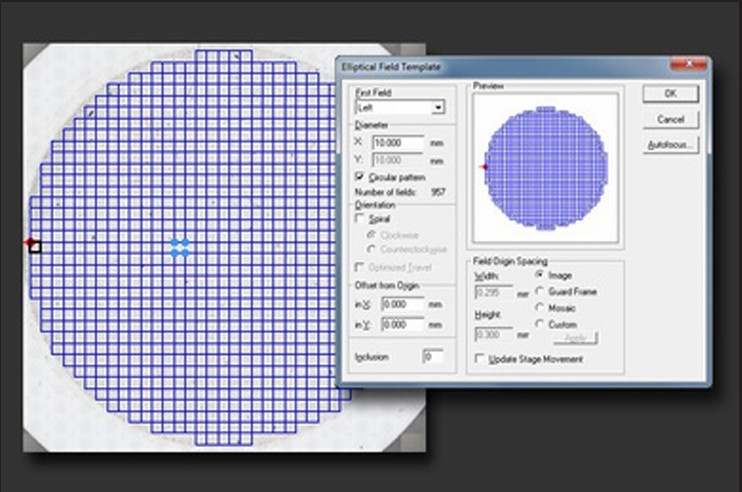

Circular Stage Pattern
This feature simplifies the creation of circular stage patterns for the analysis of membrane filters and wafers. You can define key parameters such as size, shape, and number of fields, while the software automatically generates and executes the pattern.
More Features
ACCURATE DETECTION
Detect objects that are difficult to distinguish due to transparency, low contrast, or faint outlines.
CLASSIFY OBJECTS
Isolate objects using any measurement type (length, width, aspect ratio, roughness, etc.).
CONDITIONAL INSTRUCTIONS
Analyze objects that meet specific criteria, such as size, shape, or orientation.
DIRECT MEASURES & ANNOTATIONS
Annotate images on-the-fly during analysis and include results and visuals in reports.
EXTENDED DEPTH OF FIELD
Obtain a sharp composite image made from multiple image slices, ideal for uneven surfaces.
EXTERNAL DEVICE CONTROL
Activate external devices such as valves, locking mechanisms, alarms, or lights.
IMAGE OPTIMIZATION
Includes shading correction, auto-exposure, white balance, auto-focus, parfocality, and paraxiality for each magnification.
MOTORIZED STAGE CONTROL
Control the stage directly through the software and define scanning regions using pre-built templates.
SEPARATE OBJECTS
Automatically separate adjacent objects before performing measurements.
SCAN REGION AUTOMATION
Create automated stage patterns based on detected objects or sample reference points.
THIRD-PARTY IMAGES
Import images from various sources, including SEMs or scanners.
Product Details
Tailored Image Analysis Systems
Typically an upright microscope, a motorized stage, and a high-resolution camera are selected to fit your specific image analysis needs. We ensure a seamless integration of all components.
- Analysis of your needs by a technical representative
- Configuration, fine-tuning, and calibration
- On-site installation and training of your team
Streamlined Workflow for Maximum Productivity
Increase productivity in a high throughput lab using a very simple workflow. The operator follows a 3-step procedure to obtain repeatable results:
- Position a sample on the stage
- Start an analysis on the sample
- Review data and export results
