Welding analysis
In this application note, Clemex Captiva is selected to measure the angle and length of interested feature on a fillet welding image.

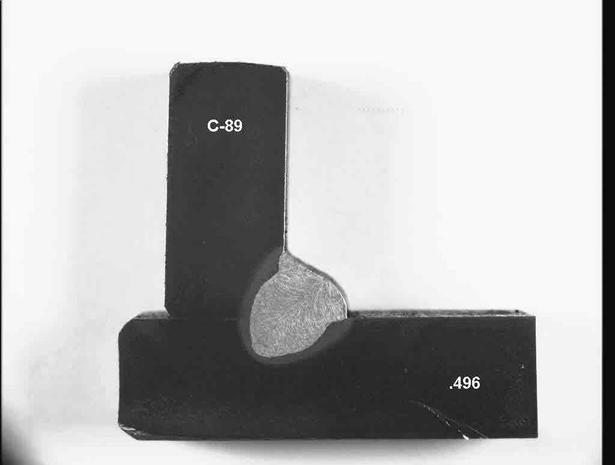

The original submitted welding image is viewed at 10X magnification.
Six typically measured characteristics on welded parts.
Clemex solution for welding analysis
Solution
Demonstrate the ability of the Clemex image analysis system can measure a sequence of specific characteristics on welded parts. The methods and operations used are discussed in the report linked at the bottom of this page (click the Download PDF link).

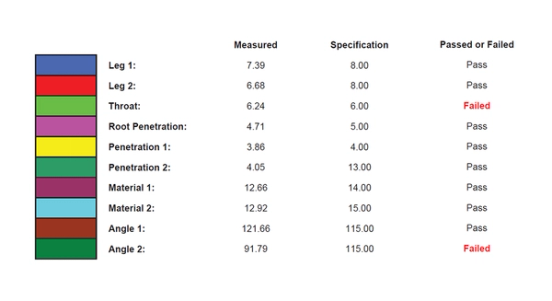

Results
The angle and length measurements were performed on each drawn feature. Automated statistics and graph were generated and would be cumulated if analyzing several images inside the same run. Final results could be printed directly from Clemex Vision or Captiva, and saved for further use. A customized report was built using the Report Generator module, to conform to industrial standards. Raw data is linked to their respective objects for validation purposes. Raw date could also be exported in Excel format.
Download the PDF Let’s discuss your needs, request a quote from our team.
