Manual Microscope Stages

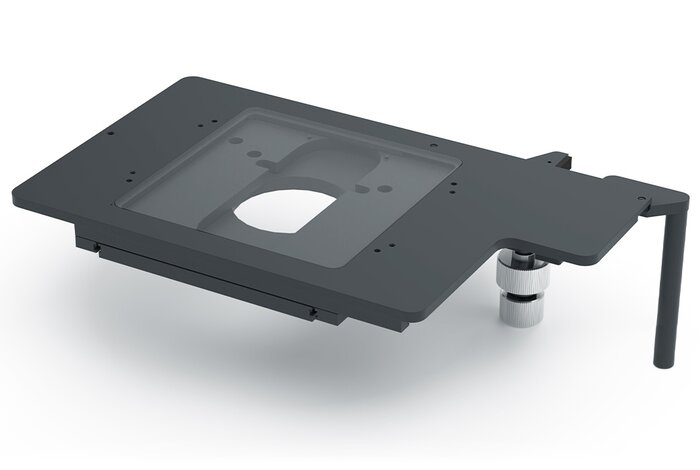

A manual microscope stage is the mechanical platform that holds your specimen and lets you move it precisely in X and Y by hand, using coaxial control knobs. Clemex supplies Märzhäuser manual stages — built on precision cross-roller bearings for smooth, repeatable travel and long service life — as classical positioning stages and as measuring stages with an integrated XY readout.
Two types of manual stages
Classical positioning stages
Classical manual stages are purely mechanical: they hold the specimen and let you reposition it smoothly in X and Y, but they do not report the sample's coordinates. They are the everyday workhorse for viewing and for large-area work, with travel ranges available up to 300 × 300 mm. On larger models, a patented quick-adjustment allows fast, economical repositioning.
Measuring stages
Measuring stages add an integrated length-measuring system so you can take true XY dimensional measurements of the specimen, not just move it. They are typically used on measuring microscopes and profile projectors. On long-travel models, a patented coarse/fine adjustment makes precise positioning easier.
Key features
- Smooth, precise running from high-precision cross-roller bearings and long-term lubrication, for a long service life
- Coaxial, height- and friction-adjustable drive for comfortable single-hand operation
- CERASIST® ceramic-type surface coating that keeps the running surfaces virtually wear-free
- A wide range of travel options, from compact stages up to 300 × 300 mm
- Brand-specific mounts for Evident, Leica, Nikon, Olympus and Zeiss microscopes
Frequently Asked Questions
What does a manual microscope stage do?
It holds the specimen and lets you move it precisely in X and Y by hand, so you can bring different areas of the sample into view smoothly and repeatably.
What is the difference between a classical stage and a measuring stage?
A classical stage only positions the sample. A measuring stage adds an integrated length-measuring system, so you can read out XY coordinates and measure feature dimensions directly.
How much travel is available?
Travel ranges go up to 300 × 300 mm on the largest models, with smaller ranges available for more compact setups. The right choice depends on your sample size and microscope.
Which microscopes are they compatible with?
Brand-specific mounts are available for Evident, Leica, Nikon, Olympus and Zeiss microscopes, among others. Our specialists confirm the correct fit for your setup.
What is CERASIST®?
CERASIST® is a ceramic-type surface coating applied to the running surfaces so they stay virtually wear-free, preserving smooth motion over a long service life.
Not sure which manual stage fits your microscope? Our specialists help you choose the right positioning or measuring stage for your lab.
